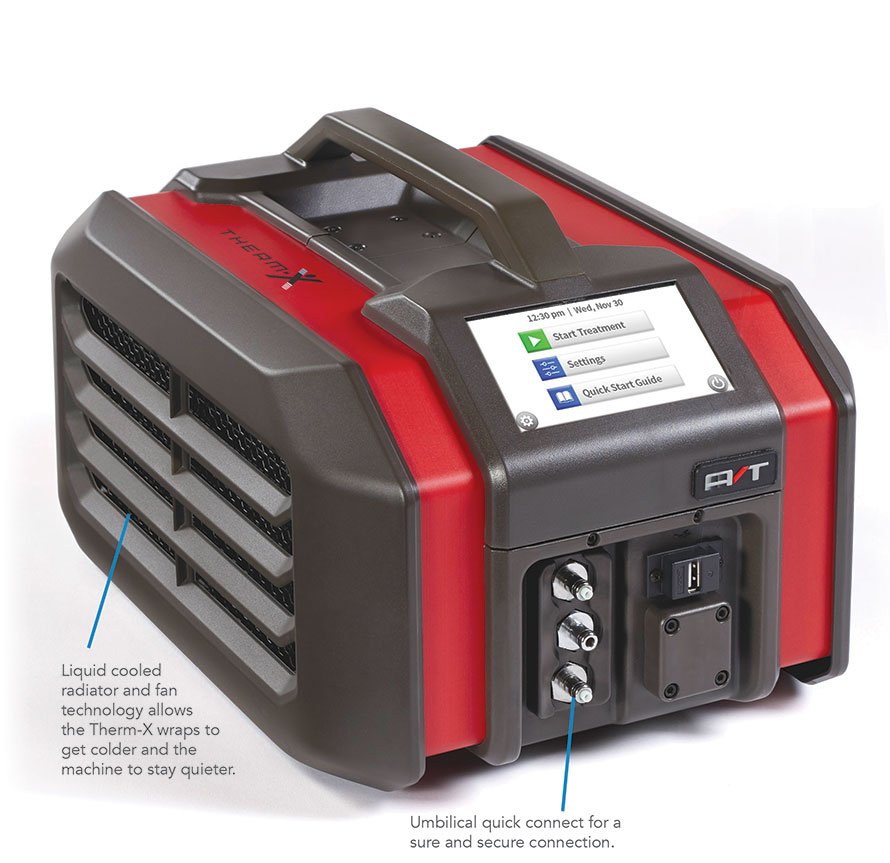

THERM-X AT
The Therm-X AT combines cold, heat, contrast, and compression therapy, in one easily portable machine.
Designed for use in Rehabilitation and Sports Medicine, the Therm-X is intended to treat post-surgical and acute injuries to reduce edema, swelling, and pain.
The Therm-X is a flexible tool with digital accuracy, when localized thermal therapy (Heat or Cold) is indicated.
"best modality of its kind that we have seen..."
Intuitive touch screen with pre-programmed or customized protocols.

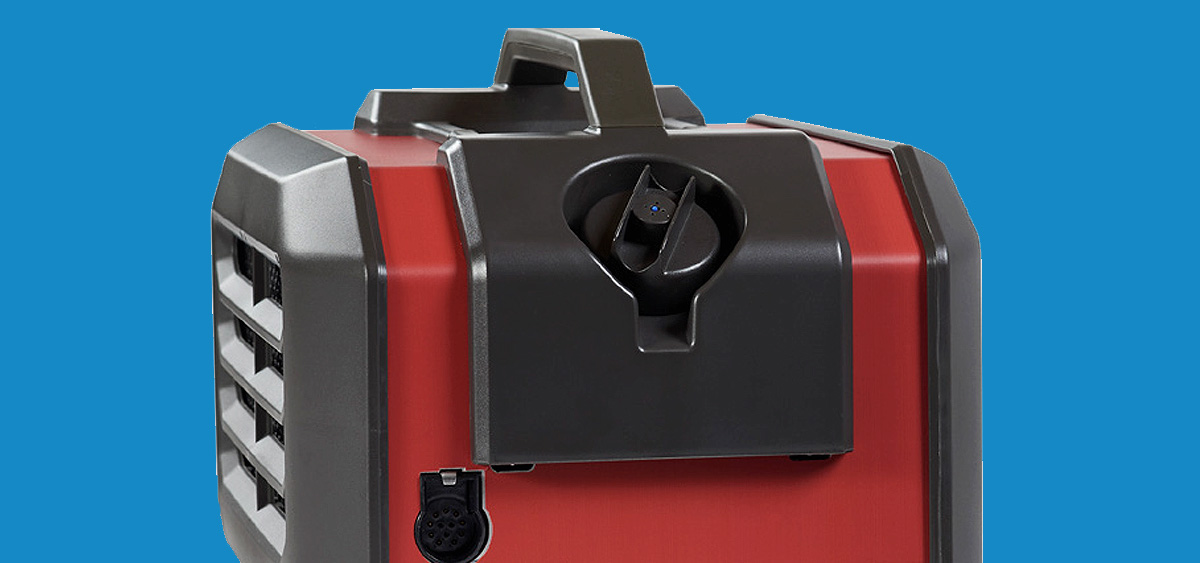

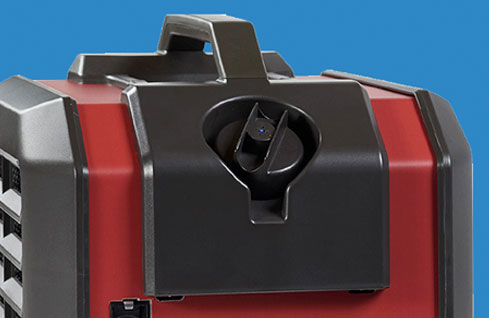

Easy fill tank uses distilled water and isopropyl alcohol. Does not require constant refilling and cleaning.
THERM-X AT SPECIFICATIONS
Catalog NUMBER
TX0002
SIZE
0.254 m x 0.229 m x 0.381 m
WEIGHT
~ 6.4 kg.
Coolant Tank Capacity
400 ml
GTIN
00850001093686
Power Supply
100V AC – 240V AC, 50/60 Hz
Umbilical Hose
1.5 m +/- 0.2 m
Default Cold Settings
1.5ºC, 7.0ºC or 12.0ºC
Custom Cold Settings
1.5º -12.5ºC
Default Heat Settings
40.5ºC, 41.5ºC or 43.0ºC
Custom Heat Settings
40.5ºC-43.0ºC
Cycle Length
Default 10 or 20 minutes, customizable to 3-40 minutes
Contrast Settings
3.5º to 40.5ºC alternating. Customizable from 3-10 minutes for heat and cold, up to 60 minute treatment.
Garment Edema Pressures
0, 5, 20, 45, and 70 mmHg
(Off, Lite, Low, Medium, and High)
Preset Protocols
3 Preset treatment selections.
Coolant Formulation
90% Distilled Water, 10% Isopropyl Alcohol
Intended Use
Therm-X AT is intended to administer cold, heat, contrast, and compression therapy to patients for which these therapies are indicated.
Indications for Use
Therm-X AT combines cold, heat, contrast, and compression therapy. Therm-X is intended to treat post-surgical and acute injuries to reduce edema, swelling, and pain for which cold and compression are indicated. It is intended to treat post traumatic and post-surgical medical and/or surgical conditions for which localized thermal therapy (hot or cold) are indicated.
Therm-X AT is intended to be used by, or on the order of, licensed health care professionals in rehabilitation facilities, outpatient clinics, and athletic training settings.
Intended Population
The Therm-X AT is indicated for patients 12 years of age and older.
Intended Users
Therm-X AT is intended to be used by, or on the order of, licensed health care professionals in rehabilitation facilities, outpatient clinics, and athletic training settings.
Clinical Benefits
Therm-X AT reduces edema, swelling, and pain by providing heat, cold, contrast and/or compression therapy to patients with acute musculoskeletal injuries, post traumatic injuries, or in medical recovery (Post-Surgical). Where appropriate, the Therm-X AT device can be used in place of ice, heating pads, compressions stocking or similar treatments to provide more consistent and continuous thermal and compression control.
This device is currently undergoing conformity assessment under the EU Medical Device Regulation (EU MDR 2017/745).
